In today’s rapidly evolving technological landscape, the demand for compact, efficient, and reliable energy storage solutions has never been greater. From portable electronics to wearable devices and Internet of Things (IoT) applications, modern devices require energy storage systems that not only offer high performance but also fit into increasingly smaller and more complex form factors. This necessity has driven innovation in components like printed circuit boards (PCBs), which serve as the backbone for electrical connectivity and energy management.
Among various PCB technologies, single sided flexible PCBs have emerged as a high-performance solution perfectly suited for compact energy storage systems. Combining a thin, lightweight design with exceptional flexibility and reliable electrical properties, these PCBs enable manufacturers to build energy storage devices that are smaller, more adaptable, and highly efficient.
As devices become smaller and more mobile, the energy storage components powering them must keep pace. Compact energy storage systems must meet several demanding criteria:
Space Efficiency: Limited internal space calls for components that are as thin and small as possible.
High Energy Density: Devices require PCBs that support circuits capable of managing dense energy storage within confined volumes.
Mechanical Flexibility: Many devices, especially wearables, have curved or irregular shapes, so PCBs need to bend without damage.
Durability and Reliability: PCBs must maintain stable electrical connections over prolonged use, even under mechanical stress.
Thermal Stability: Energy storage generates heat; PCBs must dissipate heat efficiently and resist thermal degradation.
Traditional rigid PCBs cannot fully address these challenges, as their inflexibility and thickness limit design freedom and device miniaturization. Flexible PCBs, on the other hand, offer the ability to bend and fold while preserving electrical performance, making them ideal for modern compact energy storage applications.
Flexible printed circuit boards (PCBs) utilize thin, flexible substrates that can be easily shaped and conformed to fit the unique geometries of modern electronic devices. Unlike traditional rigid PCBs, flexible PCBs enable designers to create three-dimensional layouts, allowing circuits to bend, fold, and twist within compact spaces. This capability significantly simplifies the assembly process by reducing the complexity and bulk of wiring harnesses, which in turn lowers the overall device weight and size.
The adaptability of flexible PCBs supports innovative product designs that are smaller, lighter, and more ergonomic, meeting the demands of increasingly portable and wearable electronics. This flexibility is particularly critical in applications where space is at a premium and the device must comfortably conform to a user’s body or fit within irregular housings.

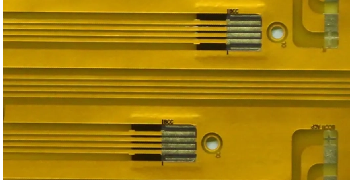

Among flexible PCBs, single sided flexible PCBs stand out due to their design featuring conductive circuitry on only one side of the flexible substrate. This single-layer approach streamlines the manufacturing process, making these PCBs more cost-effective and easier to produce compared to multilayer alternatives. The reduced material complexity enhances overall flexibility, allowing for tighter bending radii without risking circuit damage.
This simplicity and flexibility are especially valuable in compact energy storage systems, where minimizing thickness and weight is crucial to maximizing energy density and device comfort. Single sided flexible PCBs offer an ideal balance of performance, reliability, and adaptability for next-generation miniaturized devices.
The hallmark of single sided flexible PCBs is their single conductive layer. This design results in:
Reduced Thickness: Without additional layers, these PCBs can be manufactured extremely thin—often around 0.1 to 0.3 millimeters thick—significantly slimmer than rigid or multilayer boards.
Enhanced Flexibility: A single copper layer on a polyimide substrate allows the board to bend, fold, or twist without cracking or losing conductivity, ideal for conforming to tight curves or compact spaces.
Cost Efficiency: Compared to multilayer designs, single sided flexible PCBs are simpler to produce, reducing costs while maintaining performance suitable for many energy storage applications.
Materials selection plays a critical role in the performance of single sided flexible PCBs:
Polyimide (PI) Substrate: This high-performance polymer offers excellent mechanical strength, heat resistance (up to 260°C), chemical stability, and electrical insulation. Polyimide's flexibility makes it the standard choice for flexible PCBs.
Copper Conductors: The conductive traces are made from copper foil laminated onto the polyimide. Copper’s excellent electrical conductivity ensures efficient power transfer, while its thinness contributes to the PCB’s overall flexibility and compactness.
High Energy Density Support
Single sided flexible PCBs play a vital role in enabling compact energy storage by supporting high-density circuit layouts. Their ability to tightly pack conductive pathways onto a thin, flexible substrate allows for efficient power delivery and management within very limited spaces. This feature is particularly crucial in devices such as lithium-ion battery packs and portable power modules, where maximizing energy density while maintaining optimal electrical performance is essential. By minimizing the overall thickness and footprint of the circuit, single sided flexible PCBs help manufacturers design slimmer, lighter, and more efficient energy storage solutions.
Mechanical Flexibility for Diverse Form Factors
Unlike traditional rigid printed circuit boards, single sided flexible PCBs can bend, fold, and twist to accommodate a wide variety of device shapes and sizes. This flexibility is especially beneficial for:
Curved Surfaces: Devices with curved or rounded designs, such as smartwatches, fitness trackers, and medical wearables, benefit greatly from flexible PCBs that conform seamlessly to the shape of the device without compromising performance.
Irregular Shapes: Flexible PCBs can adapt to non-standard or complex enclosures without the need for additional connectors or bulky wiring harnesses, thereby reducing both device weight and assembly complexity.
Dynamic Movements: Wearable devices and portable electronics often undergo repeated bending and flexing during use. Single sided flexible PCBs are engineered to withstand these dynamic mechanical stresses without cracking or losing conductivity, ensuring long-term durability and reliability.
Reliable Electrical Connectivity in Limited Space
The single-layer layout of these flexible PCBs simplifies signal paths, reducing electrical interference and enhancing overall signal integrity. With fewer layers, there are fewer potential points of failure, which significantly improves long-term operational reliability. In energy storage systems, this translates to consistent power transmission, more efficient charging and discharging cycles, and minimized energy loss—ultimately extending device life and performance.
Single sided flexible PCBs are extensively used in portable battery packs, power banks, and compact energy storage modules. Their thin profile allows for slimmer device designs, while their flexibility accommodates ergonomic shaping that improves user comfort and device handling.
The wearable technology market demands lightweight, durable, and flexible electronics. Single sided flexible PCBs provide the backbone for energy storage within smartwatches, fitness bands, medical monitors, and other IoT devices. Their ability to bend and conform reduces bulk, making devices more comfortable and less obtrusive.
Single sided flexible PCBs offer a high-performance, tailored solution for the evolving needs of compact energy storage systems. Their thin, lightweight, and flexible design enables manufacturers to overcome space limitations and create advanced, ergonomic devices without compromising electrical reliability or efficiency. Utilizing premium materials like polyimide substrates and copper conductors, these PCBs provide exceptional energy density and mechanical adaptability—ideal for portable power packs, wearables, and IoT devices.
For those looking to innovate and bring cutting-edge miniaturized energy storage products to market, single sided flexible PCBs are essential. To learn more about this technology and explore customized solutions, consider reaching out to HECTACH. With their expertise and advanced manufacturing capabilities, HECTACH can help you design and produce reliable, efficient flexible PCBs tailored to your specific needs. Visit their website or contact them directly to discover how they can support your next project.
