In today’s fast-paced electronics market, energy storage systems must not only deliver high performance but also adapt perfectly to the diverse needs of different applications. Whether powering portable electronic devices or electric vehicles (EVs), energy storage components must be designed for maximum efficiency, durability, and seamless integration into their specific environments.

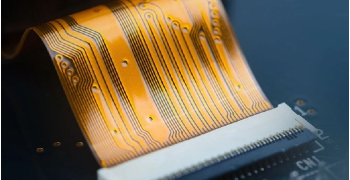

Among the critical components enabling this flexibility and performance is the single sided flexible PCB. Unlike standard rigid boards, single sided flexible PCBs can bend, fold, and conform to compact or irregular shapes, making them indispensable in modern energy storage solutions. However, no single design fits all — customization is key. Tailoring dimensions, thickness, connectors, and electrical specifications ensures the PCB meets the unique requirements of each application.
Energy storage systems vary widely in their physical form, operating conditions, and performance demands. A one-size-fits-all PCB solution cannot adequately address the nuanced requirements across industries.
For example, portable electronics like power banks or smart wearables demand ultra-thin, lightweight PCBs that can bend around small curves without compromising signal integrity. Conversely, electric vehicle battery management systems require PCBs that handle higher voltages and currents, withstand harsher temperatures, and integrate with complex control electronics.
Customization allows manufacturers to:
Optimize PCB size and shape for limited or unusual spaces
Specify thickness and flexibility to match mechanical stress profiles
Choose connectors compatible with surrounding circuitry and ease assembly
Tailor electrical characteristics (trace width, impedance, current capacity) for safety and efficiency
Implement surface treatments and materials suited for environmental conditions
Through customization, single sided flexible PCBs become highly specialized components that improve overall device reliability, efficiency, and user experience.
Dimensions:
Flexible PCBs offer great versatility in terms of size and shape. They can be fabricated as tiny strips to fit seamlessly into ultra-slim wearable devices or crafted into larger, irregularly shaped boards designed specifically for complex electric vehicle (EV) battery packs. Customizing the dimensions ensures the PCB fits precisely within the intended device enclosure, maximizing the use of available space and avoiding unnecessary bulk. This precise fit not only helps reduce the overall size and weight of the final product but also simplifies assembly by minimizing the need for additional mechanical supports or adapters.
Thickness:
The total thickness of single sided flexible PCB depends mainly on the substrate material thickness and the copper foil used for conductive traces. Thinner PCBs provide enhanced flexibility, allowing the board to bend and conform to tight curves or folds required by the device design. However, extreme thinness can compromise mechanical strength, making the PCB more susceptible to damage during handling or repeated bending cycles. Customizing the thickness enables manufacturers to strike the right balance between flexibility and durability, ensuring the PCB maintains structural integrity and electrical performance while fitting into constrained spaces.
Connector Types:
Connectors are vital for linking the flexible PCB with other parts of the device, such as batteries, sensors, or control units. Various connector options are available, including standard edge connectors like gold finger connectors, custom pin headers, or solder pads designed for wire bonding. The choice of connector impacts not only the ease of assembly but also the overall reliability and maintainability of the device. Selecting the right connector type tailored to the application’s requirements ensures secure electrical connections, reduces the risk of failure, and simplifies potential repairs or upgrades.
Customized single sided flexible PCBs can also be engineered with specific electrical parameters to meet the precise demands of each application:
Trace Width and Spacing: Wider copper traces can handle higher current loads safely, while tighter spacing allows for more compact designs but may increase the risk of electrical interference such as crosstalk or short circuits.
Impedance Control: For devices operating at high frequencies, controlled impedance traces are critical to minimizing signal loss and interference, ensuring clear and stable data transmission.
Current Carrying Capacity: Especially important in electric vehicle systems, PCBs must support high currents without overheating, requiring carefully calculated trace dimensions and materials.
Thermal Management Features: The addition of thermal vias, heat-dissipating layers, or other thermal management techniques can be customized to efficiently conduct heat away from sensitive components, enhancing longevity and reliability.
By precisely aligning both electrical and mechanical specifications during the design process, customized single sided flexible PCBs not only comply with industry safety standards but also optimize power efficiency and device performance.
Designing a single sided flexible PCB requires carefully balancing several often competing factors to meet the specific demands of the application. One of the primary trade-offs is between flexibility and mechanical strength. Thinner substrates and narrower copper traces increase the board’s flexibility, allowing it to bend and conform to tight spaces or complex shapes. However, this increased flexibility often comes at the expense of mechanical strength. If the PCB is too thin or the copper traces too delicate, it may be prone to cracking, delamination, or other forms of damage when subjected to repeated bending or mechanical stress. Designers must ensure the PCB can endure repeated bending cycles without failure, especially in applications like wearables or portable devices where movement is constant.
Another important trade-off lies between electrical performance and size. Compact trace layouts support smaller, thinner boards, which is essential for space-constrained designs. However, reducing trace width or increasing trace density can limit the current-carrying capacity of the PCB and increase the risk of signal interference or crosstalk. Maintaining signal integrity and electrical reliability requires careful planning of trace widths, spacing, and routing to balance miniaturization with performance.
Material selection plays a critical role in overcoming these challenges. High-quality polyimide substrates offer excellent flexibility, mechanical durability, and heat resistance, making them ideal for flexible PCB applications. Similarly, copper foil thickness affects both conductivity and mechanical strength—thicker copper improves current capacity and durability but reduces flexibility. Experienced PCB designers carefully choose the right combination of substrate thickness, copper weight, and layout patterns to achieve the optimal balance tailored for each application’s unique needs.
Energy storage devices, especially those involving batteries, often generate significant heat during operation, particularly during charging and discharging cycles. Without effective thermal management, heat buildup can accelerate material degradation, reduce PCB lifespan, and impair overall device performance.
Customized single sided flexible PCBs can incorporate various features to address thermal and durability challenges:
Thermally Conductive Layers: These layers help spread heat more evenly across the PCB surface and dissipate it efficiently, preventing hotspots that could damage components.
Protective Coatings: Applying conformal coatings or encapsulants protects the circuitry from moisture, dust, chemicals, and other environmental contaminants that could cause corrosion or electrical failures.
Reinforced Areas: Mechanical stress often concentrates around connectors, fold lines, or mounting points. Reinforcing these areas with additional material or specialized design features enhances durability and prevents damage during use.
Together, these design strategies ensure that single sided flexible PCBs maintain reliable electrical performance and structural integrity, even in demanding environments such as automotive systems, portable consumer electronics, and other rugged applications.
Customization is essential to fully harness the advantages of single sided flexible PCBs in energy storage applications. By tailoring dimensions, thickness, connector types, and electrical specifications, designers can develop PCBs that perfectly match the unique mechanical and electrical requirements of portable devices and electric vehicles. This precise customization not only enhances device performance and reliability but also simplifies manufacturing and improves the overall user experience.
As energy storage technology advances toward smaller, more efficient, and adaptable solutions, customized single sided flexible PCBs continue to play a pivotal role. For companies and innovators looking to leverage these benefits, HECTACH offers expert design and manufacturing services to create flexible PCB solutions tailored to your specific needs. To learn more about how HECTACH can support your next project or to discuss customized options, visit their website or contact their team directly. They are ready to help you build the future of compact, high-performance energy storage.
