Printed circuit boards (PCBs) are the backbone of modern electronics, providing the physical and electrical foundation for countless devices. In flexible printed circuit (FPC) technology, both single-sided and double-sided designs are widely used, each with unique advantages, applications, and manufacturing considerations. Among these, the Double-sided FPC has emerged as a preferred choice for complex automotive, industrial, and consumer electronics due to its enhanced circuit density and versatility. Understanding the differences between single-sided and double-sided PCBs is critical for engineers, product designers, and procurement specialists aiming to optimize performance, cost, and reliability. This article will break down their structural distinctions, performance characteristics, and use cases to provide a comprehensive perspective.
A single-sided PCB is the simplest form of printed circuit board, featuring only one conductive layer—usually copper—deposited on a single side of the substrate. All components and conductive traces are located on the same side, while the opposite side serves as the insulating base. In flexible versions, this substrate is typically made of polyimide or polyester, enabling lightweight and bendable designs. Single-sided FPCs are particularly suitable for simple circuits where electrical pathways do not need to cross over each other.
Manufacturing single-sided PCBs involves fewer steps, such as etching the copper layer to form the desired circuitry, applying a solder mask, and printing silkscreen labels. The simplicity reduces production costs and turnaround times, making them attractive for low-complexity applications such as calculators, LED lighting, or basic automotive dashboard interfaces. However, the design limitations become apparent in more advanced applications. The inability to route complex signal paths without crossing or overlapping often leads to larger board sizes or the need for additional wiring, which can compromise compactness and performance.
From a mechanical standpoint, single-sided FPCs are more flexible due to having fewer layers, which is ideal for applications where the board must endure repeated bending or folding. However, this same simplicity limits their current-carrying capacity and the number of integrated functions. For automotive electronics requiring multi-signal routing—such as steering wheel control circuits—single-sided designs may fall short in performance.

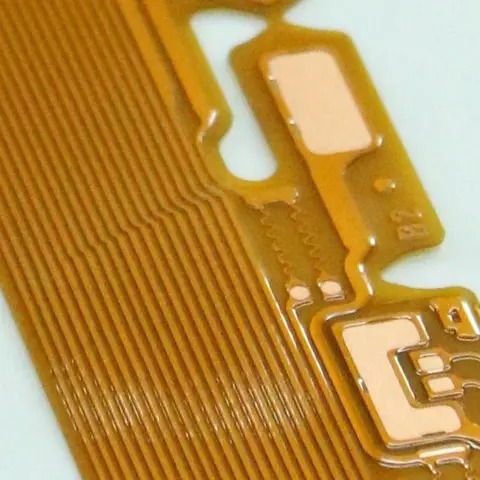

A Double-sided FPC incorporates conductive layers on both sides of the flexible substrate, dramatically increasing the available routing area. The two layers are interconnected using plated through-holes (PTHs) or vias, allowing signal transmission between the top and bottom layers. This configuration enables more compact designs without sacrificing complexity or performance.
In manufacturing, double-sided flexible PCBs require more advanced processes. Both sides of the substrate undergo separate etching, plating, and solder masking. Via drilling—whether mechanical or laser-based—is a critical step, ensuring reliable electrical connection between the two layers. The use of plated vias also strengthens the mechanical structure, although careful design is necessary to maintain flexibility.
From a functional perspective, double-sided FPCs allow designers to create denser circuits with multiple crossing signal paths. This is particularly valuable in automotive electronics, where compact modules must handle multifunctional control signals in a confined space. For example, in car steering wheel switch circuit boards, double-sided designs enable integration of various buttons, backlighting circuits, and communication pathways without excessive board size.
Another advantage is improved electrical performance. Having two conductive layers reduces the length of signal paths, which minimizes resistance and potential interference. This is especially critical for high-speed or sensitive signal transmission, where signal integrity directly impacts functionality.
While both types serve the same fundamental purpose—providing electrical connections between components—the differences in design and performance are significant. Below is a comparison table outlining the main distinctions:
| Feature | Single-sided PCB | Double-sided FPC |
|---|---|---|
| Conductive Layers | One | Two |
| Signal Routing | Limited; no crossover without jumpers | Complex routing possible with vias |
| Circuit Density | Low | High |
| Size Efficiency | Larger for complex circuits | More compact for same complexity |
| Manufacturing Cost | Lower | Higher |
| Flexibility | More flexible (fewer layers) | Slightly less flexible but still bendable |
| Applications | Simple devices, LEDs, calculators | Automotive controls, industrial sensors, communication modules |
| Electrical Performance | Longer paths, higher resistance | Shorter paths, better signal integrity |
This comparison shows that while single-sided PCBs are cost-effective for simple applications, Double-sided FPCs excel when compactness, multifunctionality, and electrical performance are priorities.
Selecting between single-sided and double-sided designs depends on the application’s requirements. If the circuit is simple, cost-sensitive, and space is not a major constraint, single-sided boards are often sufficient. However, double-sided FPCs become indispensable when:
High Circuit Density is Needed – More connections in less space.
Complex Signal Routing – Avoids the need for cumbersome jumpers.
Improved Electrical Performance – Essential for high-speed or low-noise designs.
Space Constraints – Common in automotive interiors or wearable electronics.
In the automotive industry, for instance, double-sided flexible PCBs allow integration of multiple switch functions, backlighting, and even capacitive sensing on a single compact board inside a steering wheel. This not only saves space but also improves reliability by reducing the number of connectors and wires. In industrial applications, they can handle multiple sensor inputs and outputs without large enclosures.
While the benefits are clear, manufacturing double-sided flexible PCBs involves additional complexity. The substrate must be carefully aligned for double-sided etching, and via plating must ensure consistent electrical connection without compromising flexibility. The choice of substrate—often high-quality polyimide—is critical for withstanding repeated flexing while maintaining dimensional stability.
Copper thickness must also be optimized. Thicker copper increases current capacity but reduces flexibility, whereas thinner copper maintains bendability but limits load. For automotive applications, balancing these factors ensures the circuit board can handle both electrical demands and physical stress from repeated steering movements.
Quality control measures such as electrical testing, X-ray inspection of vias, and dynamic bending tests are essential to ensure long-term reliability. This is particularly important in safety-critical applications like vehicle control systems, where PCB failure can lead to functional loss.
Q1: Is a double-sided FPC more expensive than a single-sided PCB?
Yes. The additional conductive layer, via plating, and more complex manufacturing steps increase production costs. However, the higher circuit density can offset these costs by reducing the need for multiple boards or larger assemblies.
Q2: Can double-sided FPCs be used in high-vibration environments?
Absolutely, provided they are designed with appropriate strain relief and tested for durability. Automotive applications are a prime example where double-sided FPCs withstand constant vibration and flexing.
Q3: Do double-sided FPCs compromise flexibility compared to single-sided designs?
They are slightly less flexible due to the additional copper layer and vias, but they still offer significant bendability, making them suitable for most flexible applications.
Q4: How do vias affect durability?
Vias allow signal routing between layers but must be designed carefully to prevent cracking during bending. Using flexible-compatible via designs ensures long-term reliability.
In summary, the choice between a single-sided PCB and a Double-sided FPC depends heavily on application complexity, space constraints, and performance requirements. Single-sided boards are ideal for simple, cost-sensitive projects, while double-sided flexible designs offer unmatched compactness, routing capabilities, and electrical performance for advanced applications such as automotive steering wheel control systems. As electronics continue to demand higher functionality in smaller packages, double-sided FPCs are poised to remain a vital solution in modern circuit design.
