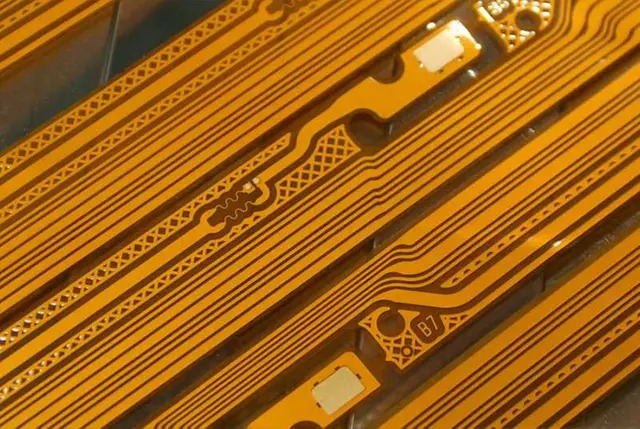

A Double-sided FPC (Flexible Printed Circuit) is a specialized type of flexible circuit board that contains conductive copper traces on both sides of a flexible base film. This design allows for more complex circuitry within a compact, bendable form factor, making it a preferred choice for modern electronics, automotive applications, and precision equipment. Unlike single-sided FPCs, which have circuitry on only one side, double-sided versions allow engineers to create higher-density layouts while still benefiting from flexibility and lightweight design.
The choice of materials for a double-sided FPC is critical because it affects electrical performance, flexibility, thermal stability, and long-term reliability. Poor material selection can lead to issues such as delamination, cracking during bending, and electrical resistance fluctuations. High-quality double-sided FPCs must balance mechanical durability with electrical conductivity, while also ensuring resistance to environmental factors like heat, humidity, and vibration.
The most common applications—such as steering wheel switch circuits, display interconnects, and compact sensors—require materials that can endure repeated flexing without signal degradation. This means engineers must carefully evaluate the base film, adhesive system, copper foil type, and protective coatings to ensure optimal performance. As industries push for smaller, more efficient electronics, the material science behind double-sided FPCs becomes a decisive factor in overall product success.
The base film of a double-sided FPC provides mechanical support while also serving as an electrical insulation layer. It is the foundation upon which all other layers are built. For high-performance applications, this base must be thin, flexible, heat-resistant, and dimensionally stable.
The most commonly used base films include:
| Base Material | Key Properties | Advantages | Typical Applications |
|---|---|---|---|
| Polyimide (PI) | High thermal stability, excellent flexibility, low dielectric constant | Withstands soldering heat, superior mechanical strength | Automotive electronics, aerospace systems |
| Polyester (PET) | Good electrical insulation, cost-effective, moderate heat resistance | Affordable, suitable for low to medium temperature uses | Consumer electronics, LED strips |
| Liquid Crystal Polymer (LCP) | Low moisture absorption, high-frequency stability, chemical resistance | Ideal for high-frequency circuits | RF modules, antennas |
Polyimide is the industry gold standard for double-sided FPCs, particularly in demanding environments like automotive steering wheel switches or engine compartment electronics. Its ability to maintain flexibility and mechanical integrity even after prolonged exposure to high temperatures makes it unmatched in many high-reliability sectors. PET is often chosen for cost-sensitive projects that do not require extreme heat resistance, while LCP is gaining traction for next-generation communication systems where frequency stability is crucial.
The conductive layer in a double-sided FPC is typically made from electro-deposited (ED) copper foil or rolled annealed (RA) copper foil. The copper layer’s quality directly affects the board’s electrical performance and flexibility.
Electro-Deposited (ED) Copper Foil: Produced through electroplating, ED copper has a rougher surface, which helps adhesion to the base film. It is cost-effective and suitable for many standard applications, but it has slightly lower ductility compared to RA copper.
Rolled Annealed (RA) Copper Foil: Manufactured by rolling copper into thin sheets and then annealing them, RA copper has superior flexibility, making it ideal for circuits subjected to repeated bending. It has a smoother surface, which is beneficial for high-frequency signal transmission.
For a double-sided FPC used in environments with continuous movement, RA copper is preferred because it reduces the risk of micro-cracking in the conductive traces. In contrast, ED copper can be an excellent choice for more static applications where cost efficiency is a priority. The copper thickness—commonly 12µm, 18µm, or 35µm—also influences performance. Thinner copper improves flexibility but can slightly reduce current-carrying capacity, so a balance must be struck based on application needs.
Adhesive layers in a double-sided FPC bind the copper foil to the base film and ensure the layers remain intact during thermal cycles and flexing. The right adhesive choice is critical because poor adhesion can cause delamination, leading to circuit failure.
The most widely used adhesive types are:
Acrylic Adhesives – Known for strong bonding strength and good resistance to moisture. They offer excellent adhesion between copper and polyimide but can have limited high-temperature resistance.
Epoxy Adhesives – Provide high thermal stability and mechanical strength. Suitable for high-temperature soldering processes.
Adhesive-less Construction – Uses a direct bonding process between copper and polyimide without a separate adhesive layer. This method improves flexibility, reduces thickness, and enhances thermal endurance.
For high-performance double-sided FPCs in automotive or aerospace applications, adhesive-less construction with polyimide base films is often favored because it eliminates the weakest thermal link in the circuit stack-up. However, acrylic or epoxy adhesives are still widely used for standard industrial and consumer electronics where extreme heat is not a major factor.

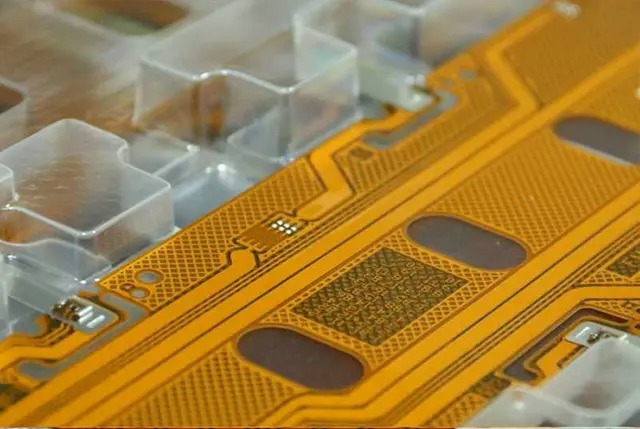

To protect the circuitry, double-sided FPCs use a coverlay film—typically polyimide or polyester with an adhesive layer. The coverlay acts as both electrical insulation and mechanical protection against abrasion, moisture, and chemicals.
Surface finishes are also essential for ensuring solderability and long-term corrosion resistance. Common finishes include:
ENIG (Electroless Nickel Immersion Gold) – Provides a flat surface and excellent corrosion resistance, ideal for fine-pitch components.
OSP (Organic Solderability Preservative) – A cost-effective option that preserves copper’s solderability for a limited time.
Immersion Tin or Silver – Offers good conductivity but requires careful storage to prevent oxidation.
Selecting the right protective materials depends on the product’s operating environment. For example, automotive FPCs benefit from ENIG finishes combined with polyimide coverlays for maximum durability against temperature fluctuations and vibration.
Q1: Why is polyimide preferred over polyester for high-performance double-sided FPCs?
Polyimide withstands higher temperatures, resists chemical degradation, and maintains flexibility over time, making it ideal for demanding environments.
Q2: Can I use ED copper for circuits that bend frequently?
While possible, RA copper is generally better for continuous flexing due to its higher ductility and resistance to crack formation.
Q3: Are adhesive-less FPCs always better?
Not always. While they offer improved thermal stability and flexibility, they can be more expensive and may not be necessary for lower-stress applications.
Q4: What’s the typical lifespan of a high-quality double-sided FPC?
With proper material selection and operating conditions, a double-sided FPC can last over a decade, even in harsh environments.
