What Is A Flexible Circuit Board?

Views: 0     Author: Site Editor     Publish Time: 2024-04-21      Origin: Site


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

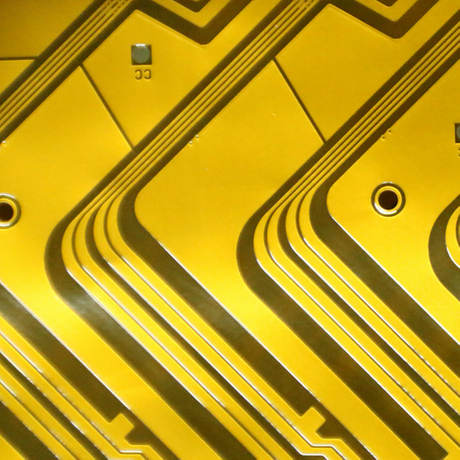

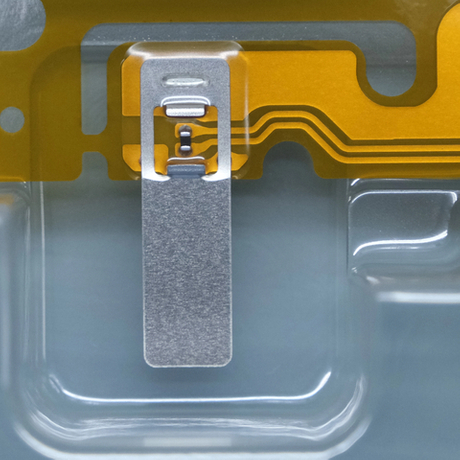

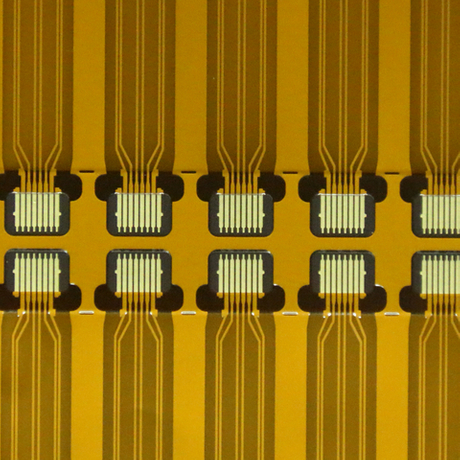

A flexible printed circuit board (FPC), abbreviated as FPC, is an electronic component made of flexible substrate materials such as polyimide. It possesses flexibility and bendability, allowing it to bend and fold within three-dimensional space. Widely utilized in consumer electronics, automotive electronics, medical devices, aerospace, and other fields, FPC provides flexible circuit connectivity solutions for various electronic devices.

Flexible printed circuit boards (FPCs) exhibit the following characteristics and performance:

1. Flexibility and Bendability: FPCs are manufactured using flexible substrates, enabling them to bend and fold to meet the complex design and installation requirements of various electronic products.

2. Lightweight and Compact: Compared to traditional rigid PCBs, FPCs are thinner and lighter, allowing for more compact designs in limited spaces.

3. High-Density Wiring: FPCs can achieve higher wiring densities, enhancing the functionality and performance of electronic products.

4. Strong Adaptability: FPCs can seamlessly integrate with curved structures, making them suitable for applications requiring curved installations, such as curved displays and bend sensors.

5. Excellent Electrical Performance: FPCs offer excellent electrical characteristics, including low resistance, low inductance, and low transmission loss, ensuring stable and reliable signal transmission.

6. High-Temperature Resistance: Manufactured using heat-resistant materials, FPCs maintain stable operation even in high-temperature environments.

7. Good Chemical Stability: FPCs demonstrate good resistance to chemical corrosion, allowing them to operate stably for extended periods in harsh environments such as chemical plants and medical devices.

The manufacturing process of flexible printed circuit boards (FPCs) involves several steps, including substrate preparation, graphic design, photolithography, plating, forming, drilling, surface treatment, assembly, testing, and packaging.

Firstly, suitable substrates are selected, and then the designed circuit pattern is transferred onto the substrate using photolithography techniques, followed by metallization to enhance conductivity. Next, the boards are shaped and drilled as per requirements, and surface treatment is applied to protect the circuit and improve solderability.

Subsequently, electronic components are mounted onto the boards either through surface mounting technology (SMT) or manual soldering to establish circuit connections. Finally, the completed FPCs undergo functional and reliability testing before being packaged for transportation and storage.
