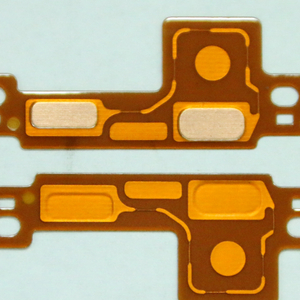

Revolutionize the efficiency and safety of New Energy Vehicle (NEV) charging infrastructure with our High-Security OEM Flexible FPC. Specifically engineered for the demanding power environments of EV charging piles and on-board charging units, this FPC solution serves as the critical bridge for voltage monitoring and thermal sensing. By replacing traditional, bulky wire harnesses with our ultra-thin, integrated flexible circuitry, manufacturers can significantly reduce system weight, eliminate manual wiring errors, and enhance the overall reliability of the high-voltage charging path.
Integrated Safety: Optimized for real-time voltage and temperature monitoring within charging modules.
Space & Weight Reduction: Replaces heavy wiring bundles with a streamlined, ultra-thin profile.
High-Voltage Resilience: Engineered to maintain dielectric integrity in 400V/800V EV architectures.
Flame Retardant Materials: Built with UL 94V-0 rated Polyimide to ensure thermal containment.
Automated Assembly Ready: Designed for high-speed pick-and-place and automated bonding processes.
| Quantity: | |
|---|---|
In the era of rapid electrification, the charging system is the umbilical cord of the vehicle. It must handle immense power while remaining cool, calm, and perfectly connected. Our OEM Flexible FPC for EV Charging Systems is the silent guardian of this process. Imagine a circuit as supple as a ribbon but as tough as industrial armor, weaving through the complex thermal management systems of a high-speed charger. It replaces the "spaghetti" of traditional wires with a singular, elegant amber-colored path that organizes hundreds of sensory points into one integrated unit.
When you touch this FPC, you feel a surface that is sleek and non-porous, designed to repel moisture and resist the harsh ozone environments of high-voltage charging. It doesn’t just carry current; it carries confidence. There is a specific peace of mind that comes with knowing your charging module is free from the mechanical failures of crimped wires and loose connectors. By integrating our FPC, you are choosing a future where charging is faster, the hardware is lighter, and the risk of thermal runaway is virtually eliminated through precision-engineered thermal sensing paths.
The transition to 800V "Super-Fast Charging" architectures places unprecedented stress on internal circuitry. Our FPCs are specifically designed to manage the unique thermal and electrical challenges of this leap in technology:
Integrated NTC Placement: Our FPC design allows for the direct surface-mounting of NTC thermistors right at the contact points of the charging connector. This provides millisecond-accurate temperature data, allowing the system to throttle power safely before an overheat event occurs.
High-Voltage Dielectric Integrity: We utilize premium, adhesiveless Polyimide substrates that offer superior dielectric strength. This prevents internal arcing and leakage currents, even when the FPC is subjected to the high-voltage spikes typical of grid-connected charging piles.
Creepage and Clearance Optimization: Our CAD engineers provide specialized routing feedback to ensure that high-voltage and low-voltage paths on the FPC maintain the strict clearance gaps required by automotive safety standards, preventing short circuits over the life of the vehicle.
The most significant pain point in charging system manufacturing is the labor-intensive nature of wire harnesses. Our Flexible FPC transforms this bottleneck into a streamlined, automated process:
Error-Proof Installation: A wire harness can be plugged in incorrectly; an FPC cannot. Its fixed geometry ensures that every sensor and every power tap is in the exact same location every time, eliminating the "human factor" from the assembly line.
Vibration and Fatigue Resistance: In a vehicle-mounted charging unit, vibration is constant. While copper wires can work-harden and snap at the crimp point, the rolled-annealed (RA) copper in our FPC is designed to absorb micro-vibrations, maintaining its molecular structure for decades.
Weight Neutralization: Every gram counts in an EV to maximize range. By replacing traditional plastic-insulated cables with our ultra-thin PI layers, you can reduce the weight of the charging interconnect system by up to 70%, contributing directly to vehicle efficiency.
EV charging systems are often located outdoors or in unconditioned spaces, exposed to humidity, temperature swings, and salt spray. Our FPCs are built to endure these harsh conditions without degradation:
Moisture-Resistant Coverlays: We use advanced thermal-cured coverlays that provide an airtight seal over the copper traces. This prevents oxidation and the growth of copper whiskers, which are leading causes of failure in high-humidity environments.
Automotive Grade Surface Finishes: Whether you choose ENIG or ENEPIG, our surface finishes are optimized for gold-wire bonding or high-reliability soldering, ensuring that the connection points remain corrosion-free even in coastal or industrial areas.
Robust Stiffener Integration: To support the mechanical stress of plugging and unplugging charging cables, we integrate localized FR4 or Stainless Steel stiffeners. This ensures the PCB remains rigid at the connector interface while remaining flexible throughout the rest of the run.
Q: Can your FPC handle the 800V charging standards?
A: Yes. We design our FPCs with specific dielectric barriers and material thicknesses to meet the insulation requirements of 800V systems. We can also perform high-pot (dielectric withstand) testing on 100% of the boards to guarantee safety.
Q: How do you integrate fuses into the FPC for battery/charging safety?
A: We can design "trace fuses" directly into the copper layer of the FPC. These are precision-narrowed traces that act as a safety disconnect if the current exceeds a specific threshold, providing an extra layer of protection against short circuits.
Q: What is the benefit of an adhesiveless base material for EV applications?
A: Adhesiveless materials are thinner and have better thermal stability. Since they don't contain an acrylic adhesive layer, they are less likely to delaminate under the high-temperature cycles common in power electronics and charging systems.
Q: Do you support integrated connectors for plug-and-play assembly?
A: Absolutely. We offer full FPCA (Assembly) services. We can solder high-density connectors and SMT sensors onto the FPC, providing you with a complete, tested module that is ready for immediate installation in your charging pile or vehicle.
Q: Is your Polyimide substrate halogen-free?
A: Yes, we offer halogen-free options for all our FPC materials, meeting the environmental and safety standards required by most global EV manufacturers.
